所属类型:纵切剪切设备

    编号:D-003

    名称:Slitting Lines

浏览次数:3429次



描述:

描述:

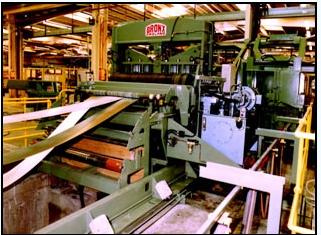

Bronx Engineering Limited designs and manufactures a comprehensive range of precision slitting lines to process light gauge through to heavy gauge high tensile steels, stainless steels, coated materials, aluminium and electrical steels.   Handling coils up to 35 tonnes in weight, up to 2,500 mm in width with material thicknesses ranging from 0.25 mm to 16 mm.    Production speeds up to 600 metres/min depending on the application, are attainable.

Bronx slitting lines are built to the highest specifications ensuring a quality product for the customer with: -
·Latest computer controlled technology    ·Quick and easy machine setting
·Maximum efficiency and productivity     ·Long blade life


1,300 mm wide × 3.00 mm thick stainless steel

2,000 mm wide × 6.25 mm thick hot rolled high tensile carbon steel


1,675 mm wide × 1.2 mm thick aluminium alloys

1,675 mm wide × 3.2 mm thick carbon steel

·Automatic coil loading/unloading
·Automatic strip feeding
·Automatic slitter head interchange
·Quick change uncoiler and recoiler mandrels
·Quick change slitter and separator tooling
·Conventional or shimless slitter tooling with computer aided set up facility
